RESIDENTIAL FENCING



RESIDENTIAL FENCING

Standard Sizes

Heights Lengths
3' 94", 120", & 143 1/2"
4' 94", 120", & 143 1/2"
5' 94", 120", & 143 1/2"
6' 94", 120", & 143 1/2"

Residential Styles

Styles Rails Pickets On Center
REGAL 1" x 1" 16ga 5/8" x 5/8" 18ga 4 1/2"
ARISTOCRAT 1" x 1" 16ga 5/8" x 5/8" 18ga 4 1/2"
MODERN 1" x 1" 16ga 5/8" x 5/8" 18ga 4 1/2"
EMPIRE 1" x 1" 16ga 5/8" x 5/8" 18ga 4 1/2"
NAPOLEON 1" x 1" 16ga 5/8" x 5/8" 18ga 4 1/2"

Galva-Guard I

Pre-Galvanized Tubing and Polyurethane Painted Materials are fabricated using galvanized tubing and finished with one spray coat high solids primer and one spray coat of high solids gloss black polyurethane paint.

Gate Availability

Single swing, double swing, ground track sliding & full cantilever slide gates. Custom lengths can be manufactured at either nominal or no additional costs.

Posts

Posts are supplied according to weight and size of fence material. They are available for dirt-set, concrete-set or flange mounting.

Installation

All fence panels and gates are delivered prepared for welded installation. BFC offers wall mount and post mounting brackets if required.

Options

BFC's Residential Iron Fencing offers endless choices of twisted pickets, scroll work, cast iron finials, rings, flame-cut letters and arching rails providing a unique design for the home.

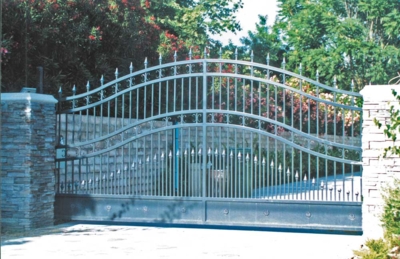

Arch Gate
Arched swing gate with doggy pickets

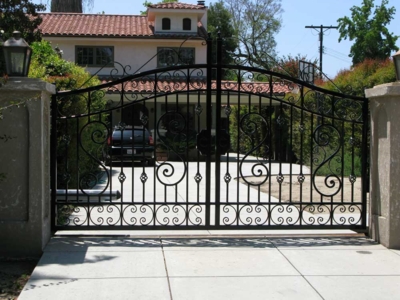

Double Swing Gate
Double drive swing gate

COMMERCIAL FENCING



COMMERCIAL FENCING

Regal & Aristocrat

Height Lengths
5' 94" & 118"
6' 94" & 118"
7' 94" & 118"
8' 94" & 118"

Guardian

Heights Lengths
7' 94"
8' 94"
9' 94"
10' 94"

Iron Square Tubing

Styles Rails Pickets On Center
REGAL 1 1/2" x 1 1/2" 14ga 3/4" x 3/4" 16ga 4 3/4" or 6"
ARISTOCRAT 1 1/2" x 1 1/2" 14ga 3/4" x 3/4" 16ga 4 3/4" or 6"
GUARDIAN 1 1/2" x 1 1/2" 14ga 3/4" x 3/4" 16ga 4 3/4" or 6"

Galva-Guard I

Pre-Galvanized Tubing and Polyurethane Painted Materials are fabricated using galvanized tubing and finished with one spray coat high solids primer and one spray coat of high solids gloss black polyurethane paint.

Pickets

3/4" X 3/4" 16 ga. steel tube at 4-3/4" O.C. or 6" O.C.

Posts

2" x 2" 14 or 11 ga. steel tube with pressed steel cap.
Space posts at 8' O.C. or 10' O.C.

Swing Gates

Framework as required for size, but not less than that of panels. Pickets to match panels. Hardware as required. Trussing and heavier posts may be necessary.

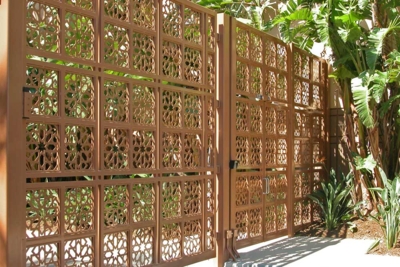

The Irvine Spectrum in Southern California features this double drive, 12 foot tall custom security gate.
Heavy double drive swing gate

Slide Gates

2" x 2" x 11 ga. steel tube top rail and verticals. Bottom rail shall be 2" x 4" x 11 ga. steel tube with wheel housings. Ground track to be angle iron (sized per requirements) with #4 rebar hooks welded at 24" O.C. Wheels shall be 6" diameter V-Groove type with grease fitting and needle bearings. Upper guides to be BFC Type I roller assemblies with 2" diameter hard rubber rollers, 1/2" axle, and bronze bushings. Safety posts to be minimum 4" sq. 11 ga. steel tube.

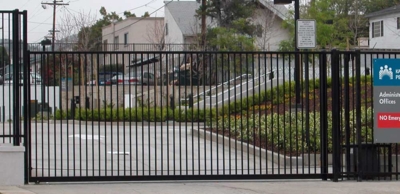

Long slide gate
Long slide gate

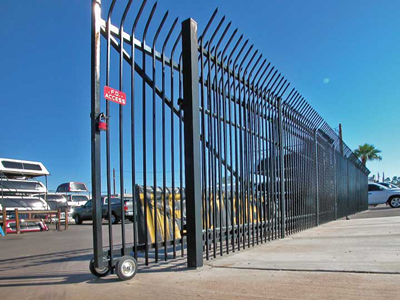

Rolling Guardian Gate
Rolling guardian gate

INDUSTRIAL FENCING



INDUSTRIAL FENCING

Regal & Aristocrat

Height Lengths
5' 94" & 118"
6' 94" & 118"
7' 94" & 118"
8' 94" & 118"

Guardian

Heights Lengths
7' 94"
8' 94"
9' 94"
10' 94"

Iron Square Tubing

Styles Rails Pickets On Center
REGAL 2" x 2" 14ga 1" x 1" 16ga 5" or 6"
ARISTOCRAT 2" x 2" 14ga 1" x 1" 16ga 5" or 6"
GUARDIAN 2" x 2" 14ga 1" x 1" 16ga 5" or 6"

Galva-Guard I

Pre-Galvanized Tubing and Polyurethane Painted Materials are fabricated using galvanized tubing and finished with one spray coat high solids primer and one spray coat of high solids gloss black polyurethane paint.

Pickets

3/4" X 3/4" 16 ga. steel tube at 4-3/4" O.C. or 6" O.C.

Posts

2" x 2" 14 or 11 ga. steel tube with pressed steel cap.
Space posts at 8' O.C. or 10' O.C.

Swing Gates

Framework as required for size, but not less than that of panels. Pickets to match panels. Hardware as required. Trussing and heavier posts may be necessary.

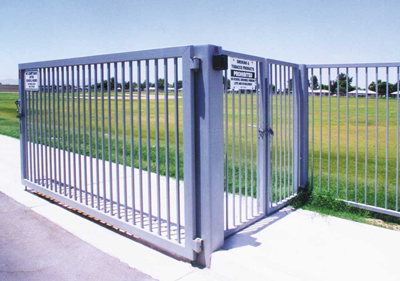

Gate-Heavy-Regal
Heavy single swing gate

Slide Gates

2" x 2" x 11 ga. steel tube top rail and verticals. Bottom rail shall be 2" x 4" x 11 ga. steel tube with wheel housings. Ground track to be angle iron (sized per requirements) with #4 rebar hooks welded at 24" O.C. Wheels shall be 6" diameter V-Groove type with grease fitting and needle bearings. Upper guides to be BFC Type I roller assemblies with 2" diameter hard rubber rollers, 1/2" axle, and bronze bushings. Safety posts to be minimum 4" sq. 11 ga. steel tube.

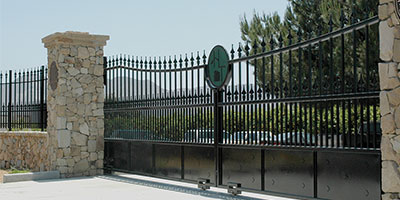

Slide Gate
Double drive slide gate

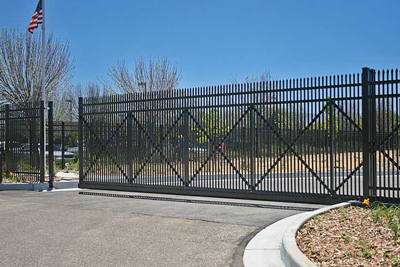

Cantilever Gate
Cantilever Gate
